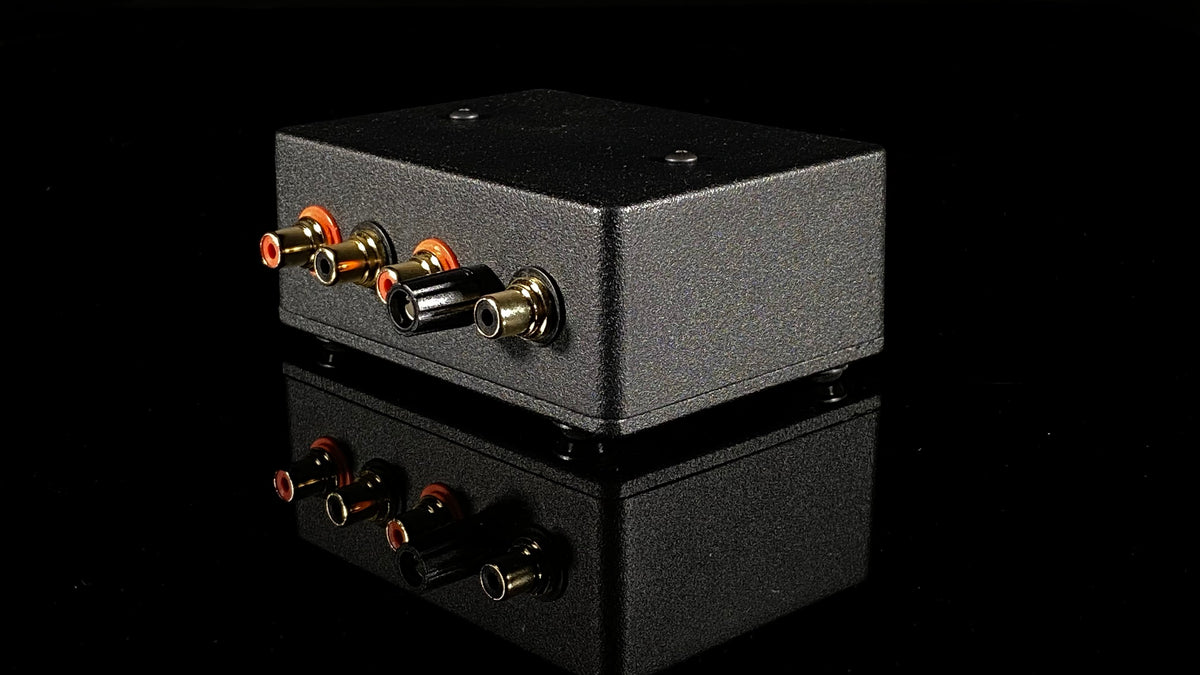

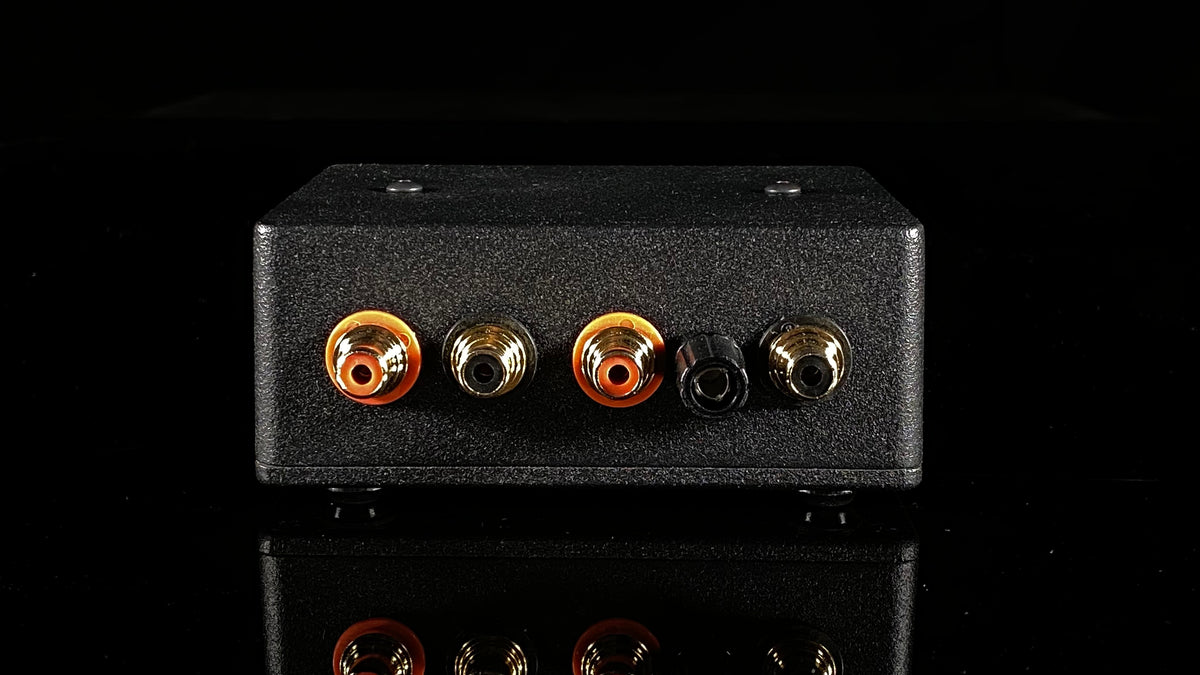

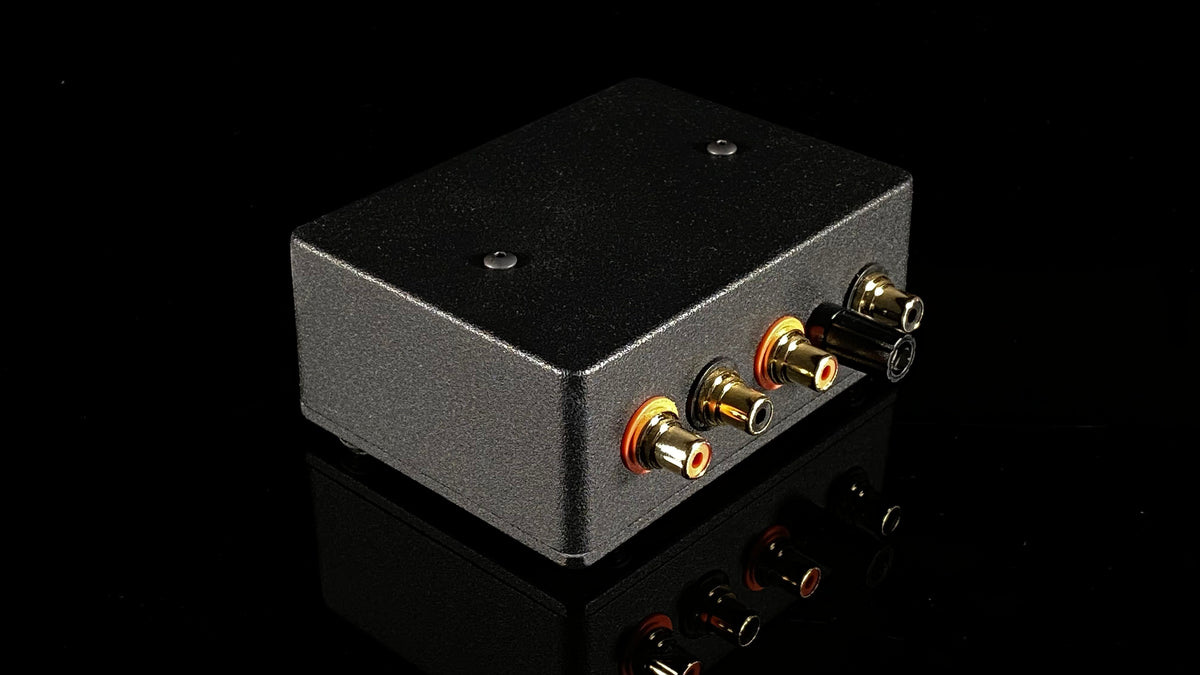

Step Up Transformer SUT

ampsandsound Step Up Transformer

Being a lover all things vinyl and moving to MC carts years ago.
I discovered the importance of Step Up Transformers (SUTs). Pair most mid teir MC carts with a MM + SUT and you’ll have audio magic.

Transformers made by CineMag CMQEE-3440AH and are similar to other well known offerings. They simple sound like live music; Magical.

Our caae works isn't fancy but built to be built proof and unassuming.

The SUTS used are constructed with superior laminations that Cinemag has reserved over the years for devices requiring the lowest distortion and highest clarity. In fact these are the same laminations that are used in the top of the line transformers.

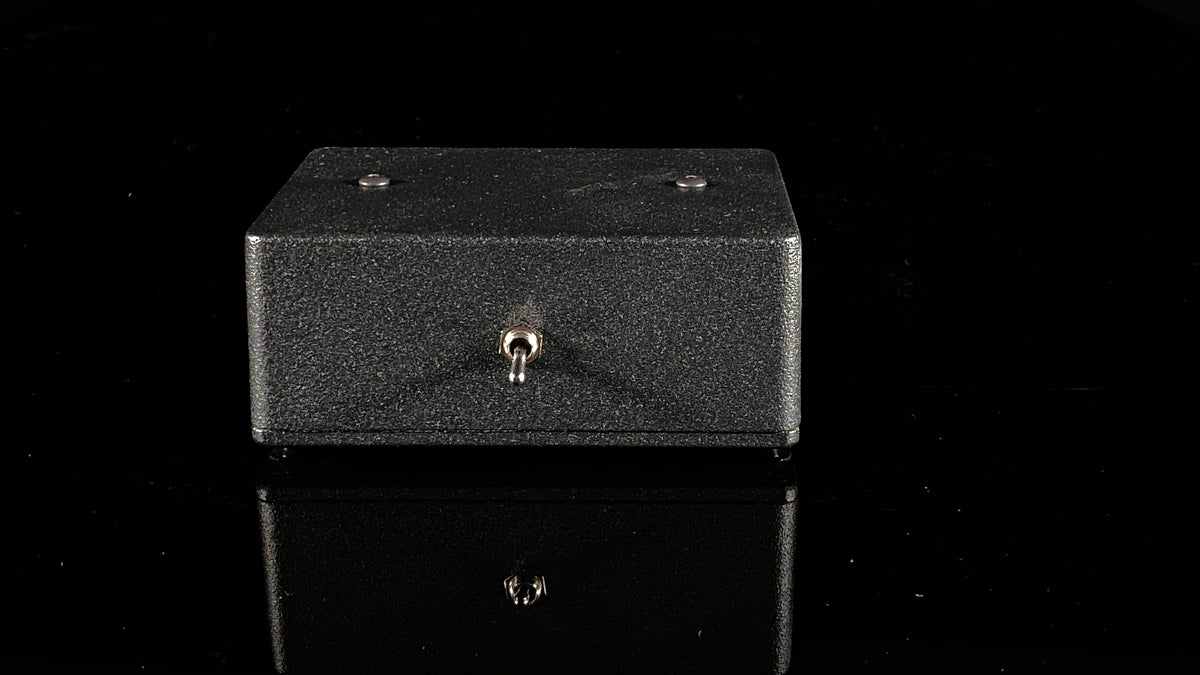

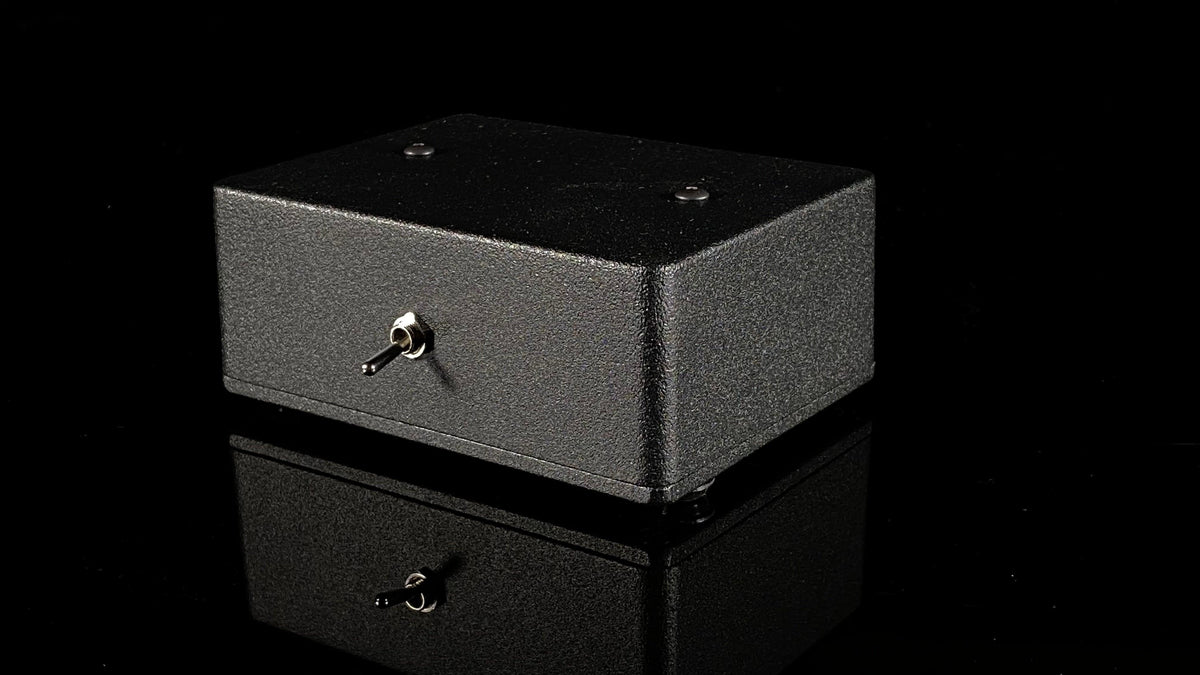

The SUT has two gain settings for maximum flexibility.

Switchable for 1:16 (24 dB gain) or 1:30 (30 dB gain).
Into a standard 47k phono preamp, the effective input impedance of the low gain (1:16 ratio) is 184 ohms. At 1:30, the effective input impedance is 52 ohms.

For a fantastic pairing, consider Denon DL103/DL103R.
